Coburn Sliding Door Gear | Ironmongery Coburn Foldaside 30 Four-Door System 2.4m opening

Description

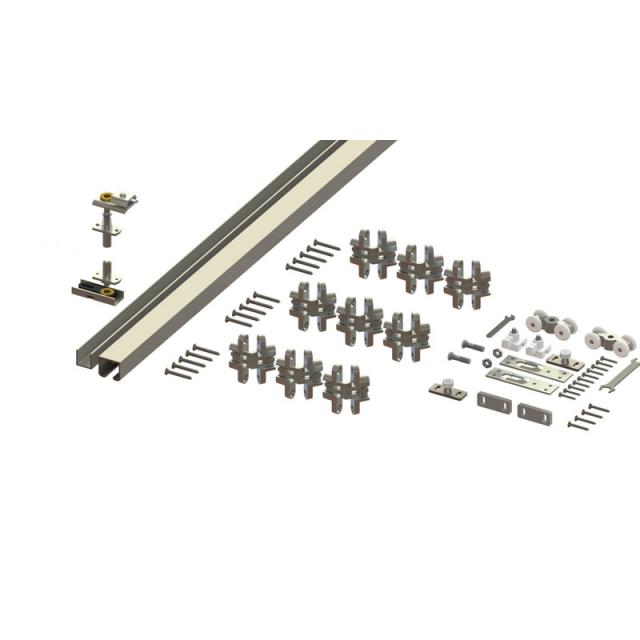

Coburn Foldaside 30 is a reliable hardware system designed for lightweight internal doors. The end door within the set is secured using a pivot bearing whilst the other doors are aligned with hinges and hangers that bring the panels together• Aluminium track and nylon wheeled hangers • Maximum of 4 doors can be hinged together, suitable for both odd and even suites • No recessed floor channel necessary• Pivot is vertically and laterally adjustable to ensure perfect fit• Smooth and quiet operation• Available in a Two-Door Trackset for openings up to 1200mm and a Three-Door Trackset for openings up to 2400mm• *Maximum door weight of 30kg for even door suites and 22kg for odd suitesTechnical Information:• Closure Type – Folding• Maximum Door Weight – 30kg• Maximum Door Width- 600mm• Maximum Door Thickness – 40mm• Maximum Door Height – 2500mm• Suitable Door Thickness – 20-40mm• Suitable Door Material – Timber• Fitting Position – Top HungContents includes: Aluminium top track, top and bottom pivots, concealed hinges, hangers, bottom channel and guide*Doors not included*
